You have a great idea for a shirt. You take a photo of a similar shirt you own. You send it to a factory. You think it is clear. A few weeks later, you receive a sample. It looks nothing like what you imagined. The collar is wrong. The pockets are in the wrong place. The fit is boxy, not slim. You are frustrated. The factory is confused. This scenario plays out every day. It is not a communication problem. It is a translation problem.
Clothing factories require technical drawings instead of just photos because a technical drawing is a universal, precise language for manufacturing. A photo shows what a garment looks like. A technical drawing shows exactly how to build it. It communicates construction details, measurements, stitching types, and fit specifications that a photo can never capture. Without a technical drawing, the factory is forced to guess. And guessing leads to costly mistakes, delays, and defective goods.
I have run a clothing factory for over a decade. I have seen thousands of orders come through. The projects that go smoothly always start with a clear technical drawing. The projects that struggle almost always start with a vague inspiration photo. When a brand sends us a photo and says "make this," we have no choice but to interpret. Every factory interprets differently. The result is rarely what the brand wanted. A technical drawing removes the interpretation. It creates a single source of truth that everyone agrees on.
What Critical Information Does a Technical Drawing Contain That a Photo Cannot Show?
A photo is a picture of a finished product. It captures the outside. It does not show what is inside. It does not tell you how the pieces fit together. A technical drawing is like a blueprint for a house. It shows every single component. It tells the builder exactly what to do. For a garment, that level of detail is essential.
What measurements must be specified on a technical drawing?
A photo does not show measurements. You cannot look at a photo of a jacket and know the exact length of the sleeve. You cannot tell the width of the collar point. You cannot see the circumference of the armhole. All of these measurements are critical. A technical drawing includes a measurement specification sheet, often called a "spec sheet." This sheet lists every key measurement point on the garment.
These are the standard measurements you must specify for any garment:
- Across Shoulder: The width from one shoulder point to the other.
- Chest Width: Measured 1 inch below the armhole, across the body.
- Body Length: From the highest point of the shoulder to the bottom hem.
- Sleeve Length: From the shoulder point to the end of the cuff.
- Armhole Circumference: The full opening where the sleeve attaches.
- Neck Width: The width of the neck opening from seam to seam.
- Waist Width: For bottoms, the circumference at the waistband.
- Inseam: For pants, from the crotch seam to the bottom hem.
A few years ago, we worked with a new brand from Los Angeles. They sent us a photo of a bomber jacket they liked. We made a sample based on our standard fit. They received it and said the sleeves were too long. We shortened them. They said the body was too short. We lengthened it. This went back and forth for four samples. It wasted two months. Finally, we asked them to sit down and create a proper spec sheet. They measured a jacket they already owned. They wrote down every number. We made the sample one more time. It was perfect on the first try. The issue was never our sewing. It was that we had no numbers to work from.
You can find templates for garment measurement specifications online. A good factory will also provide you with a blank spec sheet. You should fill it out with your target measurements. This is the most important document in your product development process. Without it, you are building in the dark.
How do technical drawings communicate construction details?
A photo shows you a seam. It does not tell you what type of seam it is. Is it a flat-felled seam? Is it a French seam? Is it a simple overlocked seam? Each seam type requires a different machine and a different technique. The same applies to pockets, plackets, cuffs, and collars. A technical drawing shows these details with line drawings and callouts.
For example, a photo of a pair of jeans shows the back pocket. It does not show you the specific stitch pattern on the pocket. Is it a single needle stitch? Is it a double needle chain stitch? Is there a bartack at the corners? A technical drawing includes a "construction details" section. It lists every single stitch and seam type. It shows exactly how each component should be attached.
We once had a client who wanted a line of workwear shirts. They sent us photos of vintage shirts. The photos were beautiful. But they did not show the inside construction. We made the first sample with our standard construction. The client rejected it. They wanted a specific type of "flat-felled seam" on the side seams and sleeves. They wanted a "gusset" under the armhole. They wanted "triple-stitch" on the shoulder seams. None of this was visible in the photos. After three rounds of samples, we finally got it right. If they had provided a technical drawing from the start, we could have built it correctly the first time.
To avoid this, you should learn about common garment seam types and how to specify them. The same applies to pocket styles and collar styles. A technical drawing uses standard industry terminology. When you write "patch pocket with single-needle topstitch," every factory in the world understands exactly what you mean. A photo does not provide that clarity.
Why Is a Technical Drawing Essential for Accurate Costing and Sampling?
A photo gives you a dream. A technical drawing gives you a budget. Factories cannot give you an accurate price based on a photo. There are too many unknowns. What type of fabric? What is the thread count? How many pieces in the pattern? How many steps in the sewing process? Every variable affects the cost. A technical drawing answers all these questions. It allows the factory to give you a real quote, not a rough estimate.
How does a technical drawing impact the sampling process?
Sampling is where your design becomes real. The first sample is a test. It shows you if your technical drawing was clear. A good factory will follow the drawing exactly. When you receive the sample, you compare it to the drawing. You do not compare it to a feeling or a memory. You have a clear checklist. Does the collar match the drawing? Are the pocket dimensions correct? Is the topstitching the specified width?
The sampling process is designed to catch mistakes. But it only works if there is a clear standard to measure against. Without a technical drawing, you are judging the sample subjectively. You might say "I don't like the collar." But you cannot tell the factory exactly what to change. With a drawing, you can say "the collar point should be 3 inches, not 2.5 inches, as shown on page 4." This precision speeds up the process dramatically.
I remember working with a startup brand from New York. They had a great concept. But they did not know how to make a tech pack. They sent us photos and sketches on napkins. Our first sample took three weeks. They rejected it. Our second sample took another three weeks. They rejected it again. By the fourth sample, they were frustrated and so were we. We finally sat down together for two hours. We drew a proper technical drawing on paper. We wrote down every measurement. The fifth sample was approved. The entire process took four months for one style. Today, that same client sends us complete tech packs. We approve samples in one or two rounds. They save months of time and thousands of dollars in sampling costs.
To streamline your sampling, you should use a standard tech pack template. A tech pack includes your technical drawing, measurement spec sheet, construction details, fabric information, and trim information. It is the complete package. A factory can take a tech pack and produce an accurate sample without asking a single question. That is the goal.
What cost elements are clarified by a technical drawing?
Your cost is determined by three main factors: materials, labor, and overhead. A technical drawing clarifies all of them. On materials, the drawing shows the pattern pieces. A factory can estimate how much fabric is needed per garment. This is called the "consumption." A drawing with many small pieces or complex shapes will have higher consumption and higher fabric cost.
On labor, the drawing shows the construction steps. A simple t-shirt might have 15 sewing operations. A complex technical jacket might have 80 operations. Each operation takes time. More time means higher labor cost. A technical drawing allows the factory to calculate the "SAM" or Standard Allowed Minutes. This is the time it should take a skilled worker to make one garment. SAM is the basis for labor costing.
On overhead, the drawing shows the complexity of the garment. A simple garment can go through the production line quickly. A complex garment requires more handling, more quality checks, and more supervision. All of this adds to the overhead cost. A detailed cost breakdown sheet from your factory should show you how the drawing affects each cost element.
A few years ago, a client wanted to reduce their cost on a hoodie. They sent us a photo and asked for a cheaper version. We could not give them a meaningful answer. We asked them to create a technical drawing of their ideal hoodie. Then we sat down together. We looked at the drawing. We identified areas where we could reduce cost. We changed a zipper pocket to a patch pocket. We changed a double-layer hood to a single-layer hood. We changed a metal zipper to a plastic zipper. Each change was clearly identified on the drawing. The final cost was 25% lower. And the client could see exactly where the savings came from. They still had a great product. They just made intentional trade-offs based on clear information.
How Do Technical Drawings Protect Both the Brand and the Factory?
A technical drawing is not just a design tool. It is a legal document. When both parties sign off on a technical drawing, it becomes the contract for production. If the factory makes a garment that does not match the drawing, the factory is responsible. If the brand approves a sample that matches the drawing but later changes their mind, the brand is responsible. This clarity prevents disputes. It protects everyone.
What role does the technical drawing play in quality control?
Quality control is about checking against a standard. The technical drawing is that standard. Every factory uses a quality control checklist. That checklist comes directly from the technical drawing. The QC inspector checks the measurements against the spec sheet. They check the construction against the details in the drawing. They check the trims against the listed specifications.
A clear technical drawing allows for objective quality control. Without it, quality control becomes subjective. One inspector might think a seam is acceptable. Another might reject it. This inconsistency leads to problems. With a drawing, the standard is written down. There is no debate. A measurement is either within tolerance or it is not. A seam type is either correct or it is not.
We recently had a situation with a European brand. They were very strict about quality. Their technical drawing was extremely detailed. It showed exactly how the topstitching should look on every seam. It specified the stitch length. It specified the distance from the edge. When we shipped the order, they did their own inspection. They found one style where the topstitching distance was off by 1mm on a small section of the garment. According to their drawing, this was a defect. They requested a discount. We agreed without argument. The drawing was clear. We had failed to meet the standard. We learned from it. The next order was perfect. The drawing made the process fair for both sides.
You should always ask for a pre-production sample approval against the technical drawing. Do not approve verbally. Sign the sample. Attach a copy of the drawing. This creates a clear record. If there is a dispute later, you have physical evidence of what was approved.
How do technical drawings enable efficient communication across language and cultural barriers?
Clothing manufacturing is a global industry. A brand in New York works with a factory in China. The factory manager might speak Mandarin. The pattern maker might speak Cantonese. The sewing line supervisor might speak a different dialect. The brand owner speaks English. Relying on verbal communication or written descriptions is risky. A technical drawing is visual. It transcends language.

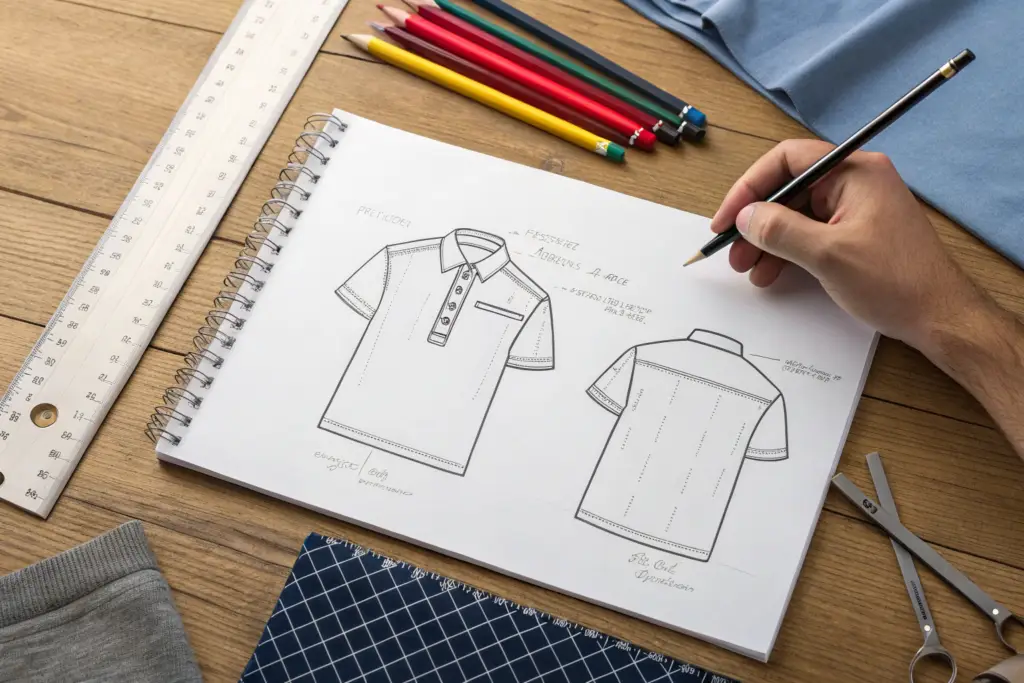

The drawing uses universal symbols and industry terms. A "1/4 inch double-needle topstitch" means the same thing in New York, Shanghai, and Dhaka. The visual representation of a pocket shows exactly where it goes. You do not need to translate the word "pocket." The drawing shows the pocket. This visual clarity reduces miscommunication. It speeds up every step of production.
I have seen many situations where a brand sends a photo with a long email description. The factory translates the email. Something gets lost in translation. The sample comes back wrong. The brand gets frustrated. They think the factory is incompetent. The factory thinks the brand is unclear. The real problem is the lack of a visual document that both sides can reference without translation.
At Shanghai Fumao, we work with clients from all over the world. Our pattern makers and sample makers are Chinese. Our sales team is bilingual. But the most important communication tool is always the technical drawing. When we receive a clear drawing, our team can start work immediately. They do not need to ask questions. They do not need translation. They just follow the drawing. This is why we emphasize technical drawings with all our clients. It is not extra work for them. It is the most efficient way to get exactly what they want.
If you are working with a factory overseas, you should invest time in learning how to read and create industry-standard technical drawings. You do not need to be a designer. You just need to understand the components. A good factory will help you. They will show you what information they need. But the responsibility for creating the initial drawing is yours. It is the single most important investment you can make in your production quality.
Conclusion
A photo is inspiration. A technical drawing is instruction. When you send a factory a photo, you are asking them to guess. When you send a technical drawing, you are telling them exactly what to do. The difference between guessing and knowing is the difference between a sample that takes three rounds and a sample that is right the first time. It is the difference between a production order that arrives on time and one that is delayed by confusion and rework.
The technical drawing protects your vision. It ensures that the garment you imagine is the garment that gets made. It protects your budget. It allows the factory to give you an accurate cost before cutting a single piece of fabric. It protects your relationship with the factory. It removes the frustration of miscommunication. It creates a single source of truth that both sides can reference at every step.
At Shanghai Fumao, we have built our entire production system around clear documentation. We provide our clients with templates and guidance to create complete tech packs. We review every drawing before we start sampling. We want to catch any missing details before they become problems. Our goal is to make the process from your design to your finished product as smooth and predictable as possible.
If you are planning to manufacture clothing and want a partner who values clear communication and precise documentation, we are here to help. Our Business Director, Elaine, can walk you through what we need to get started. You can reach her at elaine@fumaoclothing.com. Let us turn your ideas into garments that match your vision, exactly.
